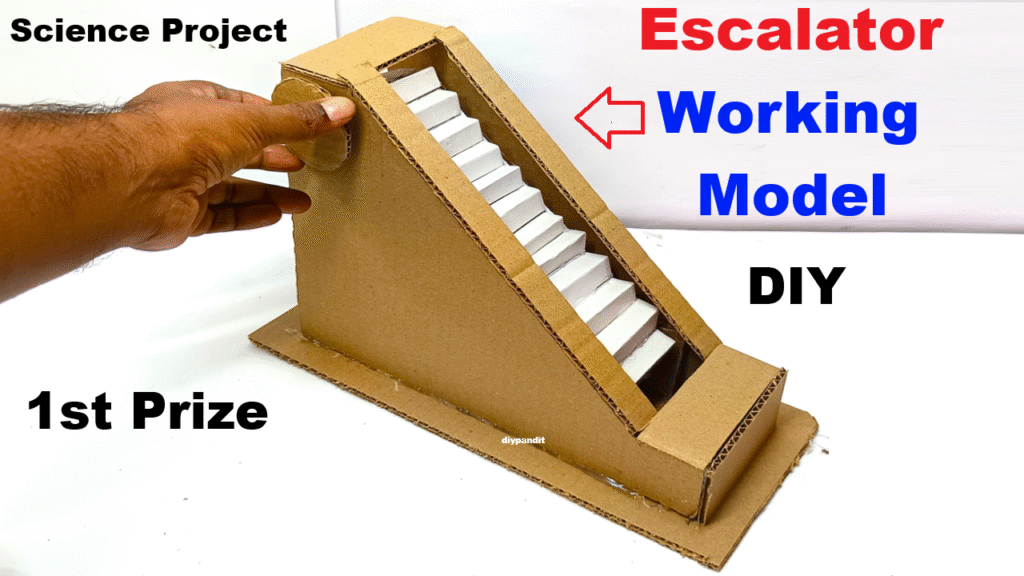

how to make escalator working model for science project exhibition – diy – creative – inspire award

Objective:

To demonstrate how an escalator works mechanically using a manual crank system, without electricity or a motor – highlighting sustainability and energy conservation.

Model Design Overview:

This escalator works by manually turning a crank that rotates a roller, which moves a belt with cardboard steps attached, just like a real escalator – but powered by hand.

Video Step-by-Step Instructions:

Step 1: Build the Base

  • Cut a rectangular base (approx. 40cm x 20cm).
  • Cut two triangular or slanted side walls and fix them upright on the base.
  • The slope should resemble a real escalator (around 45° angle).

Step 2: Create Rollers

  • Use skewers or wooden sticks for top and bottom rollers.
  • Insert them through straws fixed at both ends of the escalator walls.
  • Make sure they can rotate freely.

Step 3: Attach the Belt

  • Create a belt loop using a rubber band, long strip of paper, or thread.
  • Attach small cardboard step pieces evenly spaced on the belt.
  • Wrap the belt around the two rollers – steps should appear only on the upward-facing part.

Step 4: Add a Manual Crank

  • On one side of the lower roller, attach a bottle cap or gear as a crank.
  • When you rotate the crank manually, the belt with steps will move.

Step 5: Finishing Touch

  • Cover side walls and base with color paper.
  • Add tiny cutouts of people on steps.
  • Optional: Add dummy LEDs for a tech look (no wiring).

How It Works:

  • As you rotate the crank, it turns the roller.
  • The step-attached belt moves up, mimicking escalator movement.
  • Demonstrates manual motion mechanics and how escalators can work without electricity.
